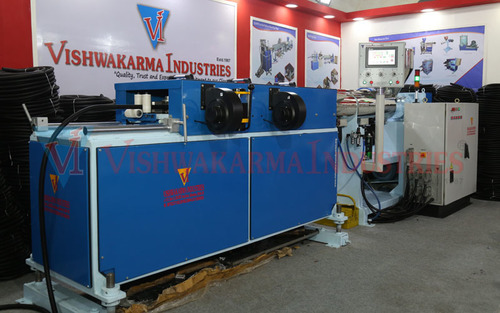

HDPE Corrugated Pipe Plant

HDPE Corrugated Pipe Plant
HDPE Corrugated Pipe Plant
Send Inquiry
Product Code : 14
Product Description
HDPE Corrugated Pipe Plant is mainly manufacture by Vishwakarma Industries, are made up of high grade raw material to the combination of technology and performance with the production output of 7kg to 35kg/hr approx. Extrusion line for the production of single-wall corrugated tubes and pipes made of PE, PP, PVC, PA, EVA, PVDF, TPE etc., as well as double and triple-wall ones made of P E, PVC and PP.  This plant is available in various size and model depend upon production.

This plant is also known by the name HDPE corrugated flexible pipe plant/machine, HDPE corrugated  pipe plant/machine, HDPE corrugated pipe die mould plant/machine, etc.


HDPE Corrugated Pipe Plant are widely used in
  • cable wire protection (in the building, telecommunications and car industry))
  • TV, telephone
  • Glass fiber
  • Electricity
  • Control and computer cables
  • Automobiles, machines and airplanes
  • Medical applications
  • Washing machines
  • Dishwashers and many other industries.

Technical Specifications


Models

VI 50

VI 65

Extruder

50mm

65mm

Main Motor

10 HP

15 HP

Heating Load

12 HP

15 HP

Barrel Blower Load

0.75 HP

0.75 HP

Take-up

5 HP

5 HP

High Speed Mixture

7.5 HP

7.5 HP

LD Ratio

25:1

25:1

Installation area

30’ x 10’

30’ x 10’

Pipe Range

8mm to 25mm

10mm to 50mm

Production Approx.

5 Kg.to 15 Kg.

7 Kg. to 35 Kg.


VISHWAKARMA INDUSTRIES
