Corrugated Flexible Pipe Plant

Corrugated Flexible Pipe Plant
Corrugated Flexible Pipe Plant
Corrugated Flexible Pipe Plant
Corrugated Flexible Pipe Plant
Corrugated Flexible Pipe Plant
Corrugated Flexible Pipe Plant
Corrugated Flexible Pipe Plant

Corrugated Flexible Pipe Plant Specification

  • Type
  • Corrugated Pipe Plant
  • Material
  • SS, MS, ALUMINIUM , IRON
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Drive Type
  • Electric
  • Color
  • Blue
  • Warranty
  • 1 Year


Corrugated Flexible Pipe Plant Trade Information

  • Minimum Order Quantity
  • 1 Plant
  • Supply Ability
  • 4 Plants Per Month
  • Delivery Time
  • 1 Months
  • Main Domestic Market
  • All India


About Corrugated Flexible Pipe Plant

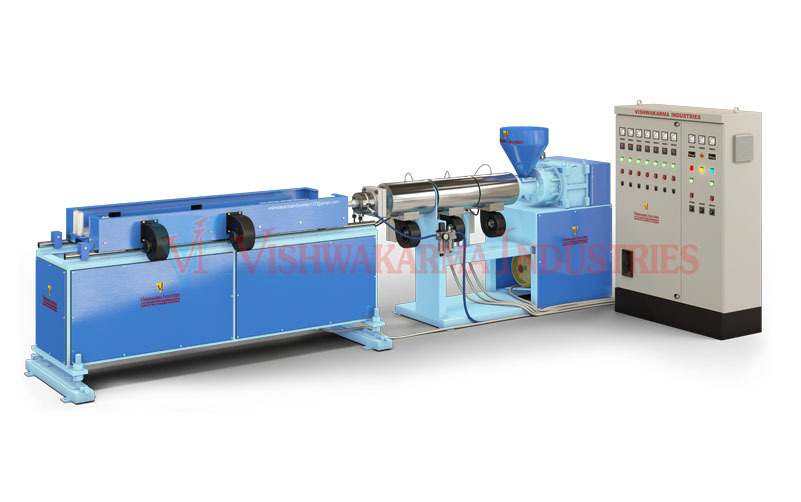

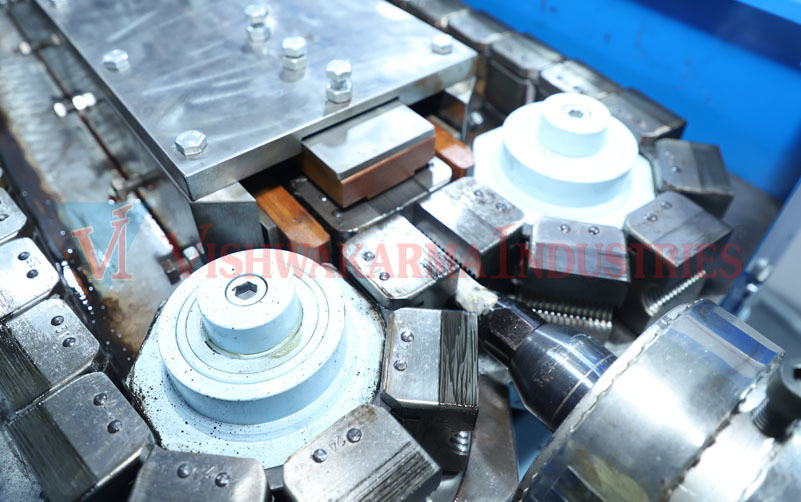

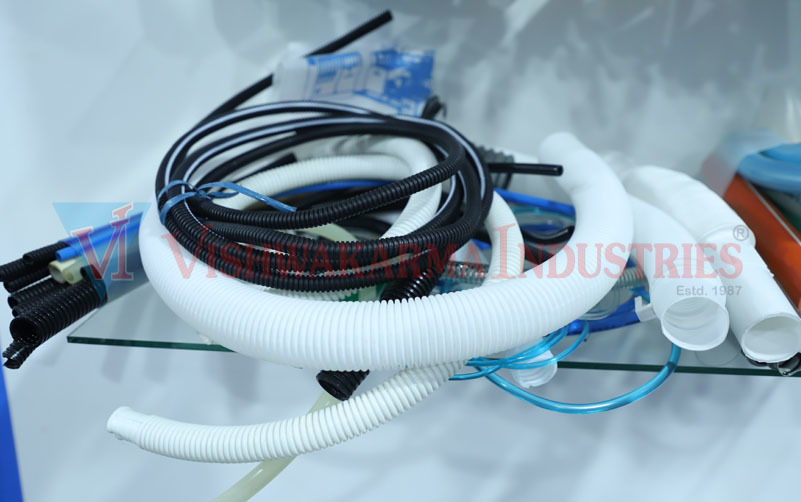

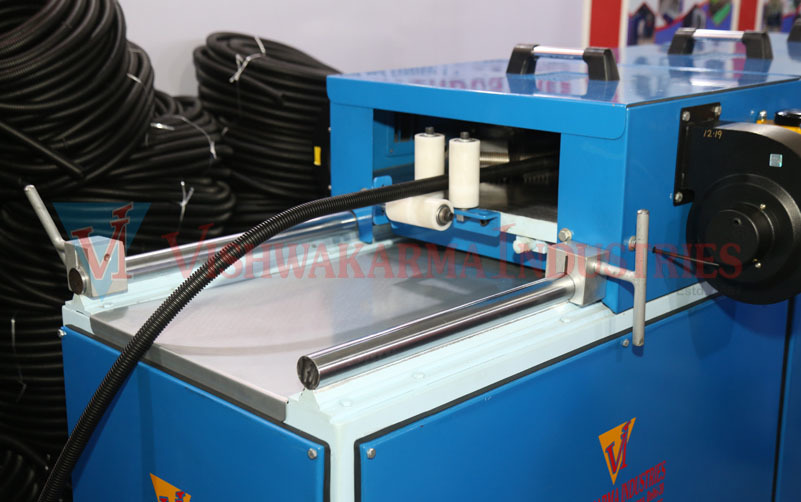

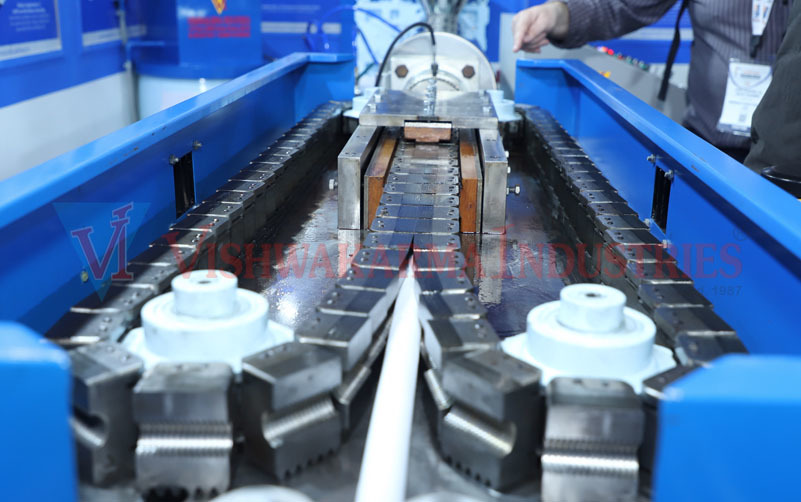

Corrugated Flexible Pipe Plant is mainly manufacture by Vishwakarma Industries are made up of high grade raw material to the combination of technology and performance with the production output of 7kg to 35kghr approx Extrusion line for the production of singlewall corrugated tubes and pipes made of PE PP PVC PA EVA PVDF TPE etc as well as double and triplewall ones made of P E PVC and PP This plant is available in various size and model depend upon productionThis plant is also known by the name HDPE corrugated flexible pipe plantmachine HDPE corrugated pipe plantmachine HDPE corrugated pipe die mould plantmachine etcCorrugated Flexible Pipe Plant are widely used inCable wire protection in the building telecommunications and car industryTV telephoneGlass fiberElectricityControl and computer cablesAutomobiles machines and airplanesMedical applicationsWashing machinesDishwashers and many other industriesTechnical Specifications Models VI 50 VI 65 Extruder 50mm 65mm Main Motor 10 HP 15 HP Heating Load 12 HP 15 HP Barrel Blower Load 0.75 HP 0.75 HP Take-up 5 HP 5 HP High Speed Mixture 7.5 HP 7.5 HP LD Ratio 25: 1 25: 1 Installation area 30 x 10 30 x 10 Pipe Range 8mm to 25mm 10mm to 50mm Production Approx. 5 Kg.to 15 Kg. 7 Kg. to 35 Kg.

FAQs of Corrugated Flexible Pipe Plant:


Q: What type of drive does the Corrugated Flexible Pipe Plant use?

A: The Corrugated Flexible Pipe Plant operates with an electric drive.

Q: Is the Corrugated Flexible Pipe Plant automatic?

A: Yes, the Corrugated Flexible Pipe Plant features an automatic grade operation.

Q: What materials are used to construct the Corrugated Flexible Pipe Plant?

A: The Corrugated Flexible Pipe Plant is constructed using SS (Stainless Steel), MS (Mild Steel), Aluminium, and Iron.

Q: Does the Corrugated Flexible Pipe Plant come with a warranty?

A: Yes, the Corrugated Flexible Pipe Plant comes with a 1-year warranty.

Q: What control system is implemented in the Corrugated Flexible Pipe Plant?

A: The Corrugated Flexible Pipe Plant operates using a PLC (Programmable Logic Controller) control system.

Q: Is the Corrugated Flexible Pipe Plant computerized?

A: Yes, the Corrugated Flexible Pipe Plant is computerized.

Q: What is the color of the Corrugated Flexible Pipe Plant?

A: The Corrugated Flexible Pipe Plant is blue in color.
